PRESS INFORMATION

June 22nd, 2012

Full Bucket Seat, “MS-R” and Semi Bucket Seat, “MS-Z” PDF Brochure data is uploaded.

MUGEN (M-TEC Co., Ltd. Shin Nagaosa, president) (Hereinafter called MUGEN) announced to release the flag ship model full bucket seat, MS-R and MS-Z, a semi-bucket seat featuring high driver-support performance, with fatigue reduction effect, and easy-access integrated in harmony within the design, collaborated with RECARO. Both of the seats will be on sale on May 24th.

Full Bucket Seat, “MS-R”
Semi Bucket Seat, “MS-Z”

Full Bucket Seat, “MS-R”
Lightweight and high rigidity full carbon shell is utilized in order to hold the driver securely while enduring strong G-forces during cornering, and can help the driver sit in stress-free, natural position. Form and thickness of the urethane are modified to fit each part of the body, which maximizes contact area and in the end leads to high driver-support performance and fatigue reduction effect. The front area of MS-R is covered in Alcantara®

Semi Bucket Seat, “MS-Z”
When developing a bucket seat two contradictory requirements need to be addressed - that of ergonomic driver support while at the same time providing driver comfort, including easy-access. The shoulders, waist, and thighs should be held securely in priority to other body parts while driving. Even when the upper part of the body is held securely, if the thighs remain free to move, the driver will experience stress or fatigue, which can hinder precise driving. MS-Z is specifically designed to reliably hold and support the shoulders, waist, and thighs and the hardness of the urethane sections in each area is adjusted optimally. Due to such properties, MS-Z can contribute to safety and tireless long-distance driving under any conditions. The front area of MS-Z is covered in Alcantara®

Each of MS-R and MS-Z seat or a set of MS-R with RECARO seat rails and a side adaptor and MS-Z with RECARO seat rails are selectable.

Alcantara® is a registered trademark of Alcantara S.p.A.

Full Bucket Seat MS-R

Product Number: 81100-XXF-K0S0

□ Carbon fibre shell □ Belt holes for 3 inches full harness □ Lumber support pad insertion type
□ Deep side support □ Divided seat cushion □ Non-slip seat cushion
□ Alcantara® □ Shoulder grip □ MUGEN Logo (embroidered)
Main body weight: 6.5kg
MS-R meets the FIA Standard 8855-1999.
Product Name
Applicable
Model
Product Number
Hour

Full Bucket Seat

“MS-R”

Seat Rail set *1

CIVIC TYPE R
FD2
[Driver's]
[Passenger's]
81500-XKPC-K0S0-D
81500-XKPC-K0S0-P
1.0h
S2000
AP1/2
[Driver's]
[Passenger's]
81500-XGS-K0S0-D
81500-XGS-K0S0-P
0.8h
CR-Z *2
ZF1
[Driver's]
[Passenger's]
81500-XLT-K0S0-D
81500-XLT-K0S0-P
1.0h
FIT *2
FIT HYBRID *2
FIT HYBRID RS *2
FIT SHUTTLE *2
FIT SHUTTLE HYBRID *2
GE6~9
GP1
GP4
GG7/8
GP2
[Driver's]
[Passenger's]
81500-XLFD-K0S0-D
81500-XLFD-K0S0-P
1.0h
*1 A set of MS-R, RECARO seat rail, and side adapter
*2 Not mountable on the vehicles with i-side air bag system for the front seat.

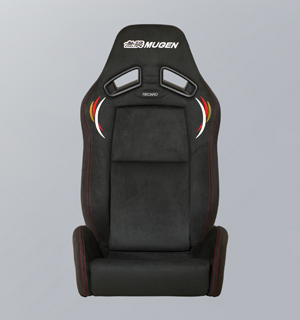

Semi Bucket Seat MS-Z

Part Number: 81100-XXG-K0S0

□ Stepless recliner □ Forward folding backrest □ Lumbar support pad insertion type
□ Belt holes for safety harness □ High grip side support □ Long & deep seat cusion
□ Alcantara® □ Shoulder grip □ MUGEN Logo (embroidered)
Main body weight: 15.0kg
Product Name
Applicable
Model
Product Number
Hour

Semi Bucket Seat

“MS-Z”

Seat Rail set *1

CIVIC TYPE R
FD2
[Driver's]
[Passenger's]
81300-XKPC-K0S0-D
81300-XKPC-K0S0-P
0.8h
CR-Z *2
ZF1
[Driver's]
[Passenger's]
81300-XLT-K0S0-D
81300-XLT-K0S0-P
0.8h
FIT *2
FIT HYBRID *2
FIT HYBRID RS *2
FIT SHUTTLE *2
FIT SHUTTLE HYBRID *2
GE6~9
GP1
GP4
GG7/8
GP2
[Driver's]
[Passenger's]
81300-XLFD-K0S0-D
81300-XLFD-K0S0-P
0.8h
*1 A set of MS-Z and RECARO seat rail
*2 Not mountable on the vehicles with i-side air bag system for the front seat.
