MUGEN

Direct replacement for the OE air cleaner box
Layout is optimized to lower the intake air temperature, meaning taking denser air to accomplish a high power. New filter material was adopted and air box form was modified to lower inhalation resistance.
Filter maintenance kit (sold separately), allows air filter to be reused repeatedly.

1.5h 17200-XLR-K0S0

Filter Maintenance Kit
Set consists of filter washer (spray) and filter oil (aerosol)

90000-YZ0-5000-99

Filter Element
Service parts for hi-performance air cleaner & box

0.1h 17220-XLR-0000

4-2-1 layout stainless steel exhaust manifold, allowing smooth flow of exhaust gases to increase available torque and power in all ranges
Sports catalyser is adopted to provide performance with efficient control of emissions.

3.0h 18100-XLR-K0S0

Sports exhaust system giving both excellent exhaust efficiency and effective silencing
Large-diameter, TIG-welded pipe give smooth emission flow and low emission pressure.
All stainless steel
Certified by MLIT (Ministry of Land, Infrastructure, Transport and Tourism, Japan)

0.6h 18000-XLR-K1S0

A set of the metal disc and clutch cover
Disc: t=4.6 mm / Set load: 7,800Nm

4.3h 22000-XK5-S1N0

The copper fiber clutch system is developed for ease of use on the street, combined with a more positive direct feeling and response and crisp gearshifts while sports driving.
A newly-developed non-asbestos material containing copper and resin has been used for the friction plate allowing good frictional properties for the transfer of power in both low and high temperature conditions. Set load: 7,100Nm
A set of a cover, a disk, and a release bearing

4.3h 22000-XKPE-K0S0

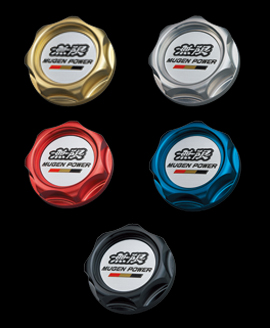

Precision-machined from solid aluminium and hard-anodised finish, Two piece structure, MUGEN logo is on top. Grip part is hexagonal for easy grip. 5 colors are available: Champagne Gold, Silver, Red, Blue, and Black

0.1h
[CHAMPAGNE GOLD] 15610-XG8-K2S0-CG
[GRAY SILVER] 15610-XG8-K2S0-GS
[RED] 15610-XG8-K2S0-R
[BLUE] 15610-XG8-K2S0-BU
[BLACK] 15610-XG8-K2S0-BL

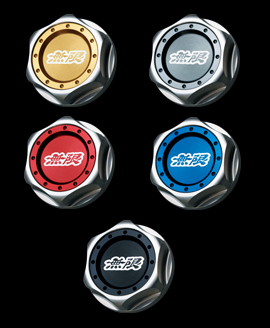

Precision-machined from solid aluminium and hard-anodised finish
5 colors are available: Champagne Gold, Silver, Red, Blue, and Black

0.1h
[CHAMPAGNE GOLD] 15610-XG8-K1S0-CG
[SILVER] 15610-XG8-K1S0-S
[RED] 15610-XG8-K1S0-R
[BLUE] 15610-XG8-K1S0-BU
[BLACK] 15610-XG8-K1S0-BL

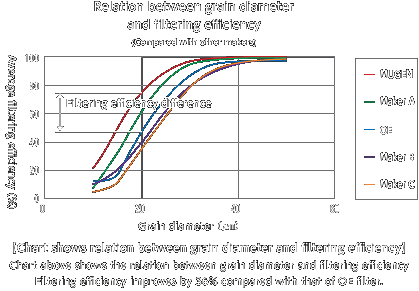

The filtering range and position of the filter are optimized in order to eliminate sludge deposits as much as possible, as a result reduces the low pressure loss (improved by 10%) while significantly increasing the high temperature resistance capability. By adopting a “Y” shape internal filter, which efficiently traps sludge on the filtering fibers MUGEN engineers have been successful in reducing the amount of harmful contaminants re-entering the engine lubrication system. Because of the materials, anti-heat acrylic rubber (gasket) and silicon rubber (anti-drain), this oil element functions without any problems in the high temperature condition of the VTEC engine.

0.3h 15400-XK5B-0000

Maintaining oxidation performance and cold-start performance necessary for street use, it performs as well as racing engine oil.
VT-α is the 100% synthetic engine oil that MUGEN, a specialist of Honda engines, develops exclusively for the Honda VTEC engine.
Oil viscosity, 5w-40 which is ideal for the VTEC engine is adopted, and MODTC, organ molybdenum is added in a balanced manner to actualize excellent oil film retention and low friction.

4Litre Can

90000-XYC-5W40

1Litre Bottle

90000-XYC-5W40-B2

Exchange amount (ℓ) Oil only: 4.2 Oil and Filter: 4.4

Prevents mechanical loss of engine power and reduces mechanical noise.
Molybdenum, a major ingredient of MT105, is quickly absorbed into the metal friction surface, filling surface irregularities and forming a smooth surface with a strong lubrication film, which in turn reduces the friction resistance and minimizes the loss of engine power as a result.
Amount:200ml

90000-YZ0-105

Ignition coil cover made of autoclaved dry carbon

0.2h 12500-XK2B-K0S0
