MUGEN

The ultimate brake system for both street and circuit driving; comprising of the newly-developed front monobloc 4-piston caliper, front and rear pads, front rotor, and micromesh brake lines.
A complete combined braking system developed and tested with professional drivers at demanding race circuits such as Twin Ring Motegi, and others, for absolute performance. Using high end data capture and analysis the result is a superbly balanced brake system with an unmatched level of touch and feel for the driver, with the endurance to cope with the most severe of conditions.

CONTENTS
☻ Monobloc 4-piston front brake caliper (Gold or Black)
☻ Exclusive front and rear brake pads (Type S including shims or Type C not including shims)
☻ Exclusive large-diameter reversed bench front brake rotor
☻ Exclusive front micro mesh brake line
☻ Hi-performance brake fluid (500ml x 2 cans)

∗ Neither OE wheels nor MUGEN GP wheels (18 x 7 1/2 J inset 55) are applicable.

Optional item for the “Advanced Complete Brake System”
Exclusive micromesh rear brake line

1.0h

46450-XLR-K0S0

A set of pairs of MUGEN GP front wheels (18 x 8J inset 46) and front wheel arch trims
Optional item for the “Advanced Complete Brake System”
GFRP, Unpainted
A set of right and left front fender covers
Two colors are available, gun metallic or bronze. Wheel nuts are not included.
[Recommended tyre size: 225/40R18]

Special inset wheels and front wheel arch trims need to be installed at the same time.

Improves the effectiveness and control characteristics required for occasional sports driving. Reduces wear and squeaking noise of the pads and assures anti-fading effect required for fast driving. A set of right and left pads
Appropriate temperature: 50°C - 550°C

[FRONT]

0.7h

45022-XLR-K000

[REAR]

0.7h

43022-XLR-K000

Assures the anti-fade effect required for regular circuit use and realizes a good brake effect and secures control to fully enjoy high speed circuit driving.
A set of right and left pads
Appropriate temperature: 100°C - 700°C

[FRONT]

0.7h

45022-XLR-K100

[REAR]

0.7h

43022-XLR-K100

Outer blade is made of φ0.21 mm copper wire which is made up of seven micro copper wires woven together. Because of that the brake line is quite flexible and has stronger fatigue endurance. Since connecting parts are the same spec as OE ones, MUGEN brake line has both better performance and the same reliability compared to OM brake lines.
Applicable to Federal Motor Vehicle Safety Standard No. 106 of the U.S. (FMVSS)
6 lines per set.

1.3h

46400-XLR-K0S0

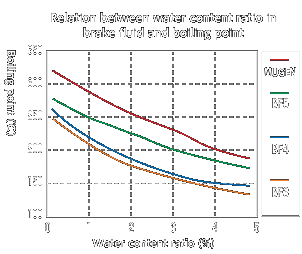

Specially developed high performance brake fluid for Honda vehicles, It helps prevent vapour lock with a dry boiling point of 327°C and a wet boiling point of 202°C, significantly exceeding the BF5 Standard. The high boiling points are maintained for a longer period due to the resistance to humidity absorption, which can cause lowering of the boiling point, and therefore the product has an increased useful life.
The product contributes to the overall excellent performance of the MUGEN braking system during high speed driving. 500ml
Two cans are necessary for full replacement

90000-XYB-B000
