Please be noted that this page introduces the parts installable on the vehicles in Japan. We do not confirm if those parts are also installable on the vehicles sold in foreign countries.
The spoiler color is matched to car body color to not only emphasize its presence but to make the front area look attractively sharp. Both sides are formed into fin shape.
To be installed on the standard front bumper.
Vacuum-molded PPE / Painted / MUGEN emblem is installed on it initially.
Installation requires partial modification of the front bumper.
Painted
0.5h
71110-XNCF-K0S0-※※
Unpainted
0.5h
71110-XNCF-K0S0-ZZ

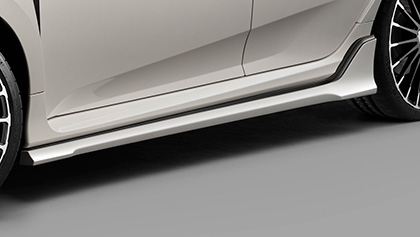

The side garnish color is matched to car body color. Due to its sharp design, side view of the car becomes stylish.
To be installed on the standard side sill garnishes / Vacuum-molded PPE / Painted
Installation requires partial modification of the side garnish.
Painted
1.2h
75300-XNCF-K0S0-※※
Unpainted
1.2h
75300-XNCF-K0S0-ZZ

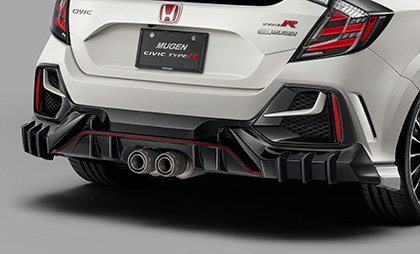

Right and left divided rear under spoiler having diffuser-style layout and glossy black is selected as its body color to show lightness.
To be installed on the standard rear bumper / Vacuum-molded PPE / Painted x glossy black
Part of diffuser / towing hook cover is made up of 3 glossy black parts and 2 car colored parts, totally 5 separate parts.
TYPE R（FK8-130〜）
Painted x glossy black
0.7h
84111-XNCF-K1S0-※※
Unpainted
0.7h
84111-XNCF-K1S0-ZZ
TYPE R（FK8-100,110,120）
Painted x glossy black
0.7h
84111-XNCF-K0S0-※※
Unpainted
0.7h
84111-XNCF-K0S0-ZZ

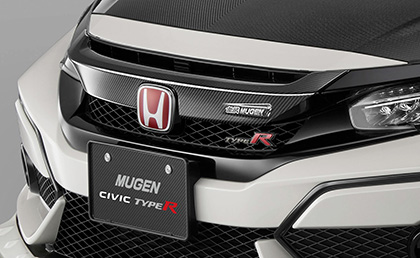

Carbon front grille garnish sharpening design of the front area
To be installed on the standard front grille
It is finished with UV-cut clear coated dry carbon
Comes with MUGEN emblem
Installation requires drilling holes in the grille.
TYPE R（FK8-100,110,120）
0.5h
75130-XNCD-K0S0
※Not possible to install to vehicle after October, 2020 (FK8-130~).

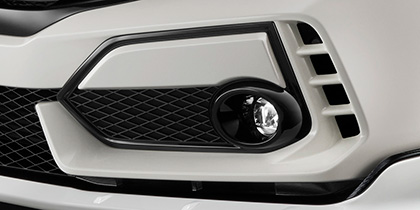

The garnish color is matched to car body color. Direct installation on the standard fog light garnish sharpens the front area with a sense of unity.
Vacuum-molded ABS / Painted
Installation requires drilling holes in the front bumper.
TYPE R（FK8-100,110,120）
Painted
1.2h
62600-XNCF-K0S0-※※
Unpainted
1.2h
62600-XNCF-K0S0-ZZ
※Not possible to install to vehicle after October, 2020 (FK8-130~).
※Insulation materials are applied to the product.

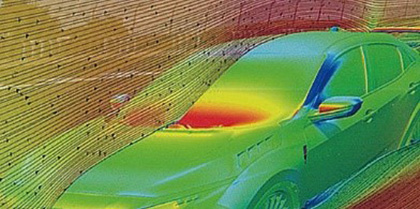

※Image showing aerodynamic performance.

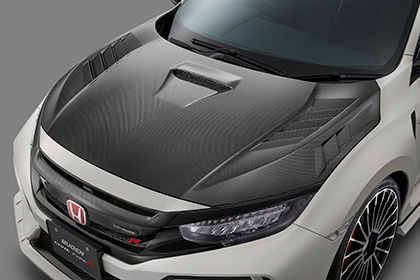

Computer-analysed to determine, not only the shape of the bonnet, but also the size and position of the air outlets. Circuit tested to confirm and optimise performance. Efficiently discharges heat from the engine compartment and works in combination with other MUGEN aero-parts to achieve higher aerodynamic performance.

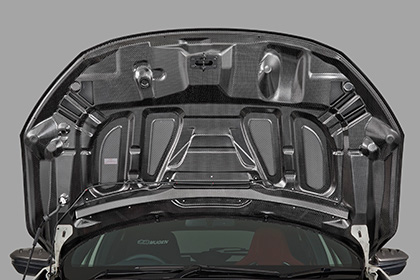

Dry carbon is used on both front and rear bonnet surfaces, with inner ribs to ensure sufficient strength. A drain hole is installed to prevent rainwater from the air outlet being directly applied into the engine compartment.
Made of dry carbon. UV resistant clear-coat finish. UV resistant clear-coat finish.
※Weight: Approx. 6.0kg (Original Equipment approx. 9.9kg)
1.0h
60100-XNCF-K0S0

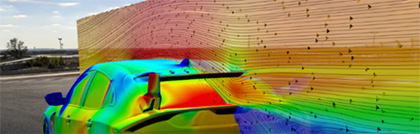

※Image showing aerodynamic performance.

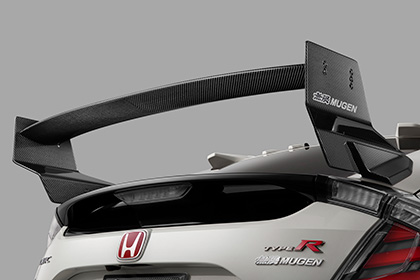

Wing cross-section, height and angle, analysed by computer, and performance confirmed during circuit testing. The CLR value (lift coefficient/rear) is improved without increasing the CD value (drag coefficient). Downforce adjustable in 4 positions.
Available in a choice of materials - dry carbon (CFRP) and glass fiber (GFRP).
※Weight : CFRP approx. 2.5kg, GFRP approx. 3.6kg (Original Equipment approx. 5.8kg)
Dry Carbon / UV Resistant Clear-Coat Finish
0.8h
84112-XNCF-K0S0
GFRP / unpainted gelcoat finish
0.8h
84112-XNCF-K1S0

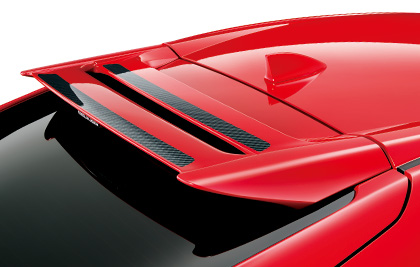

For Installation on CIVIC HATCHBACK
Wing spoiler mounts at top edge of tailgate. Made in GFRP, some areas of wet carbon, Supplied Uncoated.
0.5h
84112-XNCD-K0S0

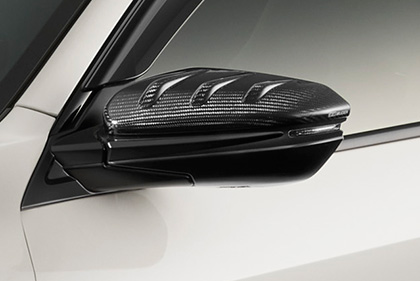

Carbon door mirror cover designed to condition air flow around the door mirror to increase running stability. Constructed using dry carbon material with UV-resistant clear coat finish to reduce fading. Made of dry carbon.
0.3h
76205-XNL-K0S0

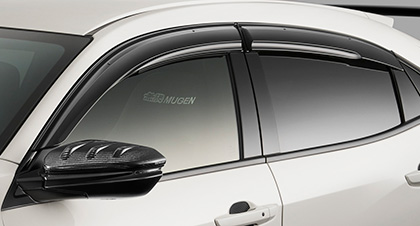

In case of the ordinary visors, when the side window is open even slightly, air emitted from the front area of the side windows re-enters the passenger compartment. But, the MUGEN ventilated visor is equipped with rubber blades on the bottom area and then it prevents the back flow and efficiently uses negative pressure to discharge air from the passenger compartment.
Furthermore, negative-pressure occurring during the drive emits air efficiently. It also works as a visor preventing rain drops from coming inside the car.
Smoked acrylic plastic / 4 pcs each of the front and rear plates as a set
※When top end of window is positioned upper than the rubber blades.
0.4h
72400-XNCD-K0S0
