HANDLING & BRAKING

Please be noted that this page introduces the parts installable on the vehicles in Japan. We do not confirm if those parts are also installable on the vehicles sold in foreign countries.


MUGEN VEZEL CATALOG DATA DOWN LOAD (PDF/5.7MB) *Japanese only

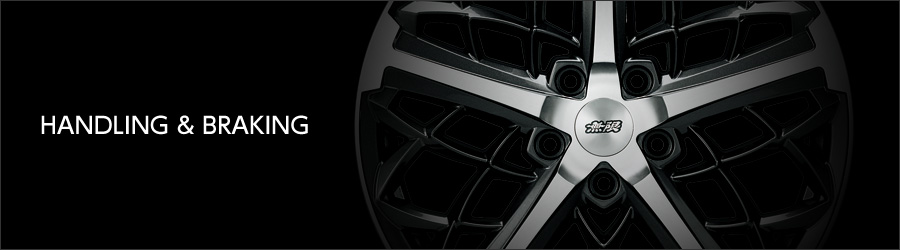

Aluminum Wheel MDV

Aluminum Wheel MDVAluminum Wheel MDV

The “MDV” alloy wheel designed with topologically-based geometric motif is exclusively developed for VEZEL. Five spokes with mesh patterns design having excellent radiation performance and contribution for high rigidity. Through use of a metal-spinning process, weight-saving and high rigidity are achieved.
Size: 18 × 17 1/2J inset 55
Color is the dark gun metallic mirror face. Special wheel nuts are sold separately.

Recommended tire size: 225/45R18
OEM wheel nuts must not be used with these wheels.

For all types (FF/4WD)

18 × 7 1/2J Inset 55

0.7h 42700-XMR-875E-55


Aluminum Wheel XJ

Lightweight and highly-rigid wheel with mesh pattern spoke design having excellent radiation performance. Hub fitting exclusive for Honda cars is adopted to improve installation stiffness between wheel and hub to achieve improvement of driving performance.

In addition, twin air valves are positioned diagonally to improve workability and convenience. Two colors, black metal coat and spark silver are available.
Sizes are 18 × 7 1/2J inset 55 and 17 × 7JJ Inset 53. Cast one-piece wheel
Special wheel nuts are sold separately.

Recommended tire size: 225/45R18, 215/55R17
OEM wheel nuts are not applicable.


For all types (FF/4WD)


Black Metal Coat

Black Metal Coat


Black Metal Coat
18 × 7 1/2J Inset 55

0.7h 42700-XJ5-875C-55

17 × 7JJ Inset 53

0.7h 42700-XJ5-770C-53


Spark Silver

Spark Silver


Spark Silver
18 × 7 1/2J Inset 55

0.7h 42700-XJ5-875P-55

17 × 7JJ Inset 53

0.7h 42700-XJ5-770P-53


Aluminum Wheel NR

One piece cast wheel featuring 10 spokes with excellent rigidity. The NR wheel also utilizes the hub fit design, which is exclusive to Honda vehicles. Deep rim designed. Available in Black Metal Coat, Mirror Face, or Silver
Exclusive wheel nuts are sold separately. Recommended tire size: 225/45R18, 215/55R17。
OEM wheel nuts must not be used with these wheels


For all types (FF/4WD)


Black Metal Coat

Black Metal Coat


Black Metal Coat
18 × 7 1/2J Inset 55

0.7h 42700-NR5-875C-55

17 × 7JJ Inset 53

0.7h 42700-NR5-770C-53


Mirror Face

Mirror Face


Mirror Face
18 × 7 1/2J Inset 55

0.7h 42700-NR5-875M-55

17 × 7JJ Inset 53

0.7h 42700-NR5-770M-53


Silver

Silver


Silver
18 × 7 1/2J Inset 55

0.7h 42700-NR5-875S-55

17 × 7JJ Inset 53

0.7h 42700-NR5-770S-53


Black

Black


Black
18 × 7 1/2J Inset 55

0.7h 42700-NR5-875K-55


Wheel Nut & Lock Set

Wheel Nut & Lock Set Silver Wheel Nut & Lock Set Black

A set of 16 wheel nuts (taper type) and 4 lock nuts
Silver chrome and black colors are available.


Silver

08181-MZ3-K0S0-S


Black

08181-MZ3-K0S0-BL



Sports Suspension

Sports Suspension

Well-balanced sports suspension with high speed stability and comfort, designed for each Hybrid FF and 4WD. A set of dampers and springs
Vehicle height compared with STD:-25mm

For HYBRID/FF

HYBRID (FF) HYBRID X (FF) HYBRID Z (FF)

3.0h 50000-XMR-K0S0

For HYBRID/4WD

HYBRID (4WD) HYBRID X (4WD) HYBRID X·L package (4WD)

3.0h 50000-XMR-K1S0


Brake Pad - Type Touring -

Brake Pad - Type Touring -

Braking performance during street driving was prioritized for its development. Corresponding to force on pedal, braking force can be optimized proportionately. Feeling of the initial brake and pedaling has been improved. A pair of right and left for each front and rear pads

HYBRID (FF/4WD) HYBRID X (FF/4WD)

HYBRID X·L package (4WD) HYBRID Z (FF)

【FRONT】 0.7h 45022-XML-K000



Hi-Performance Brake Fluid

Hi-Performance Brake Fluid

Specially developed high performance brake fluid for Honda vehicles, It helps prevent vapor lock with a dry boiling point of 327℃ and a wet boiling point of 202℃, significantly exceeding the BF5 Standard. The high boiling points are maintained for a longer period due to the resistance to humidity absorption, which can cause lowering of the boiling point, and therefore the product has an increased useful life.
500ml. Two cans are necessary for full replacement.


For all types (FF/4WD)90000-XYB-B000

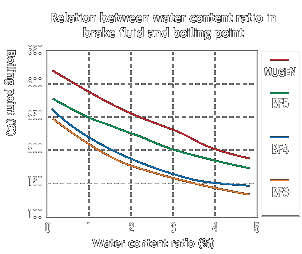

ブレーキ液の含水率と沸点との関係

For all types (FF/4WD)

HYBRID (FF/4WD), HYBRID X (FF/4WD), HYBRID X·L package (4WD), HYBRID Z (FF), G (FF/4WD), X (FF), S (FF)
