Please be noted that this page introduces the parts installable on the vehicles in Japan. We do not confirm if those parts are also installable on the vehicles sold in foreign countries.
Brake Pad -Type Touring-
FRONT
REAR
Braking performance during street driving was prioritized for its development. Corresponding to force on pedal, braking force can be optimized proportionately. Feeling of the initial brake and pedaling has been improved. A set of front and rear pads
HYBRID (FF) HYBRID·F package (FF)HYBRID·L package (FF)
HYBRID·S package (FF)13G (FF/4WD) 13G·F package (FF/4WD)
13G·L package (FF/4WD) 13G·S package (FF/4WD)
15X (FF/4WD) 15X·L package (FF/4WD)RS
[FRONT] A set of right and left pads
0.7h 45022-XLF-K200
RS
[REAR] A set of right and left pads
0.7h 43022-XK7D-K000
Brake Pad -Type Sport-
FRONT
REAR
Brake pads for easygoing to winding or sports driving at mini-circuit,
Fade resistance MUGEN brake pads respond precisely to driver's braking input, which leads to fine drivability. Right and left fronts and rears per each set.
HYBRID (FF)HYBRID·F package (FF)HYBRID·L package (FF)
HYBRID·S package (FF)13G (FF/4WD) 13G·F package (FF/4WD)
13G·L package (FF/4WD) 13G·S package (FF/4WD)
15X (FF/4WD) 15X·L package (FF/4WD)RS
[FRONT] A set of right and left pads
0.7h 45022-XLT-K000
RS
[REAR] A set of right and left pads
0.7h 43022-XLF-K000
Brake Rotor
5 slits (10 in total on both sides), 1.0mm deep engraved on the brake rotor surface not only eliminates the high-temperature gas between pads and rotors to counteract fade characteristics when driving but ensures the surface is always clean. Surfaces are also covered with a special rust-inhibiting coating, offering high durability and a fine appearance. Right and left fronts and rears per set.
FRONT: φ262
REAR: φ239
HYBRID (FF) HYBRID·F package (FF)HYBRID·L package (FF)
HYBRID·S package (FF)13G (FF/4WD) 13G·F package (FF/4WD)
13G·L package (FF/4WD) 13G·S package (FF/4WD)
15X (FF/4WD) 15X·L package (FF/4WD)RS
[FRONT] A set of right and left pads
0.8h 45250-XMK-K0S0
RS
[REAR] A set of right and left pads
0.8h 43250-XMK-K0S0
Micromesh Brake Line
Outer blade is made of 0.21 mm steel wire which is made up of seven micro steel wires woven together. Because of that the brake line is quite flexible and has stronger fatigue endurance. Since connecting parts are the same spec as OE ones, MUGEN brake line has both better performance and the same reliability compared to the OE brake lines. 4 lines per a set
Applicable to Federal Motor Vehicle Safety Standard No. 106 of the U.S. (FMVSS)
RS
1.1h 46400-XMK-K0S0
Hi-Performance Brake Fluid

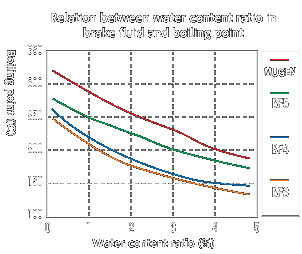

Specially developed high performance brake fluid for Honda vehicles, It helps prevent vapor lock with a dry boiling point of 327℃ and a wet boiling point of 202℃, significantly exceeding the BF5 Standard. The high boiling points are maintained for a longer period due to the resistance to humidity absorption, which can cause lowering of the boiling point, and therefore the product has an increased useful life.
500ml.Two cans are necessary for full replacement.
For all types (FF/4WD)
90000-XYB-B000
For all types (FF/4WD)
HYBRID (FF), HYBRID·F package (FF), HYBRID·L package (FF), HYBRID·S package (FF), 13G (FF/4WD), 13G·F package (FF/4WD), 13G·L package (FF/4WD), 13G·S package (FF/4WD), 15X (FF/4WD), 15X·L package (FF/4WD), RS
