BRAKING

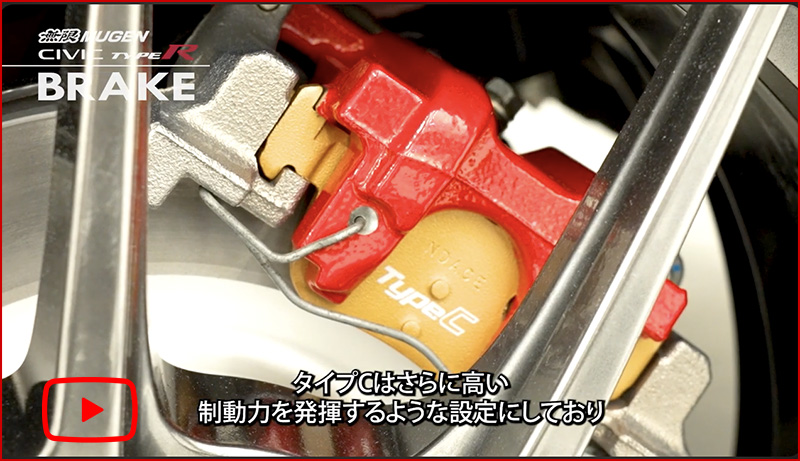

Mugen parts test for CIVIC TYPE R #4 -BRAKE-
※External link (You tube)
Please be noted that this page introduces the parts installable on the vehicles in Japan. We do not confirm if those parts are also installable on the vehicles sold in foreign countries.
High-performance brake system designed for use on international circuits /
Developed through repeated testing on circuits where brakes are subjected to high loads, with brake rotor temperatures approaching 900℃, it can deliver superior stopping power along with improved feeling of brake rigidity.
※Due to the use of special-metal brake pads, brake squeal may occur.
【Contents】
●Front: Brake caliper / brake disc / brake pipe / brake pads (left and right set)
●Rear: Brake pads (left and right set)
3.0h
45000-XNRC-K0S0
【BRAKE PAD SPEC.】
Average friction coefficient: 0.42〜0.53
Acceptable temperature range: 50〜800°C
Material: High-steel material
※This product image is for other vehicles.

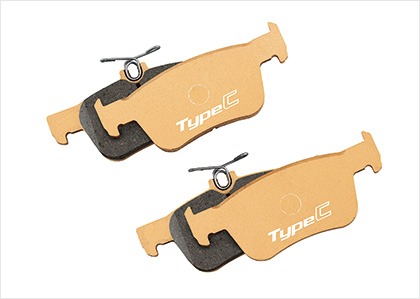

Brake pads suitable for sports driving on streets, winding roads and mini circuits. Achieves both controllability and fade resistance required for sports driving. A set of left and right pads for front and rear brakes.
【FRONT】
0.5h
45022-XNRC-K000
【REAR】
0.6h
43022-XNRC-K000
※This product image is for other vehicles.
It ensures the effective braking and fade resistance required during high loads such as full-scale circuit driving, and also provides good controllability near the limit. A set of left and right pads for front and rear brakes.
【FRONT】
0.5h
45022-XNRC-K100
【REAR】
0.6h
43022-XNRC-K100
This product image is for other vehicles.

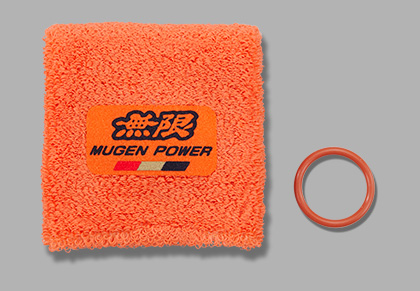

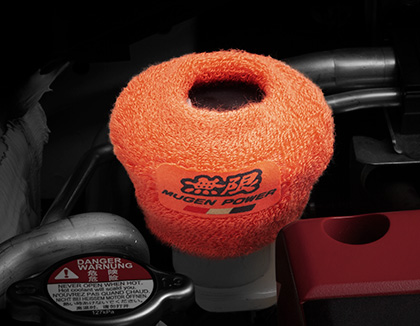

Fashionable reservoir tank cover absorbing the brake and clutch fluid leakage which can occur due to various factors in driving Fireproof aramid fabric ensures safety.
90000-XYL-513A

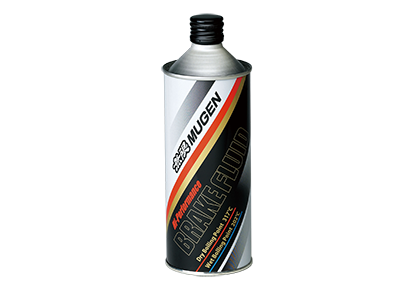

Specially developed high performance brake fluid for Honda vehicles
Dry boiling point is 317°C and a wet boiling point is 202°C and both of which are far beyond the BF5 standard temperatures. Braking feeling in hot temperature and braking performance in speed driving are improved. High boiling point is maintained for a longer period of time, which can contribute to long life of the fluid.
500㎖ / Two cans (1,000㎖) for full replacement
90000-XYB-B100
